Acura TL/CL 99-02 Stereo Removal Instructions

Acura TL/CL 99-02


Acura TL/CL 99-02 Stereo Removal



Step 1:  Unclip trim along the sides of the center console.

tlcl9902-01

Acura TL/CL 99-02 Stereo Removal

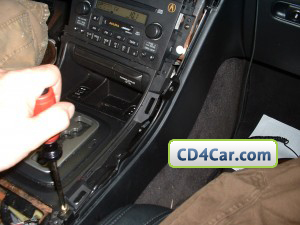

Step 2: Remove screws along the sides.

tlcl9902-02

Acura TL/CL 99-02 Stereo Removal

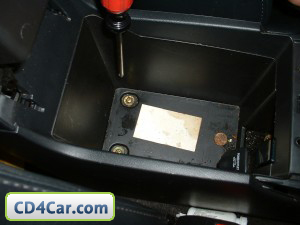

Step 3:  Remove screw from lower portion of panel.

tlcl9902-03

Acura TL/CL 99-02 Stereo Removal

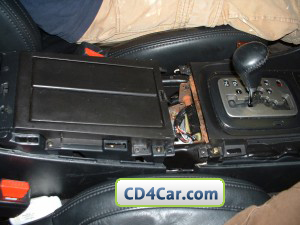

Step 4:   Remove center compartment.

tlcl9902-04

Acura TL/CL 99-02 Stereo Removal

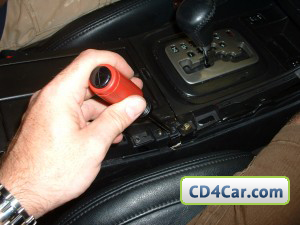

Step 5:  Remove screws holding shifter panel.

tlcl9902-05

Acura TL/CL 99-02 Stereo Removal

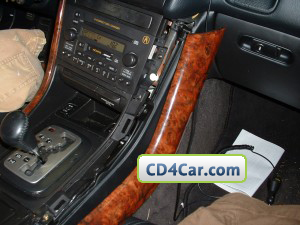

Step 6:  Slightly pull out on side panel pieces.



Acura TL/Cl 99-02 Stereo Removal





Step 7:  Remove center dash piece.



Acura TL/CL 99-02 Stereo Removal

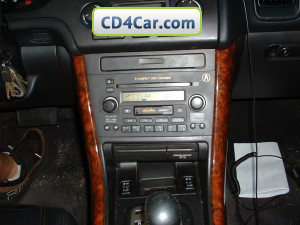

Step 8:  Remove radio.

Acura TL/CL 99-02 Stereo Removal
